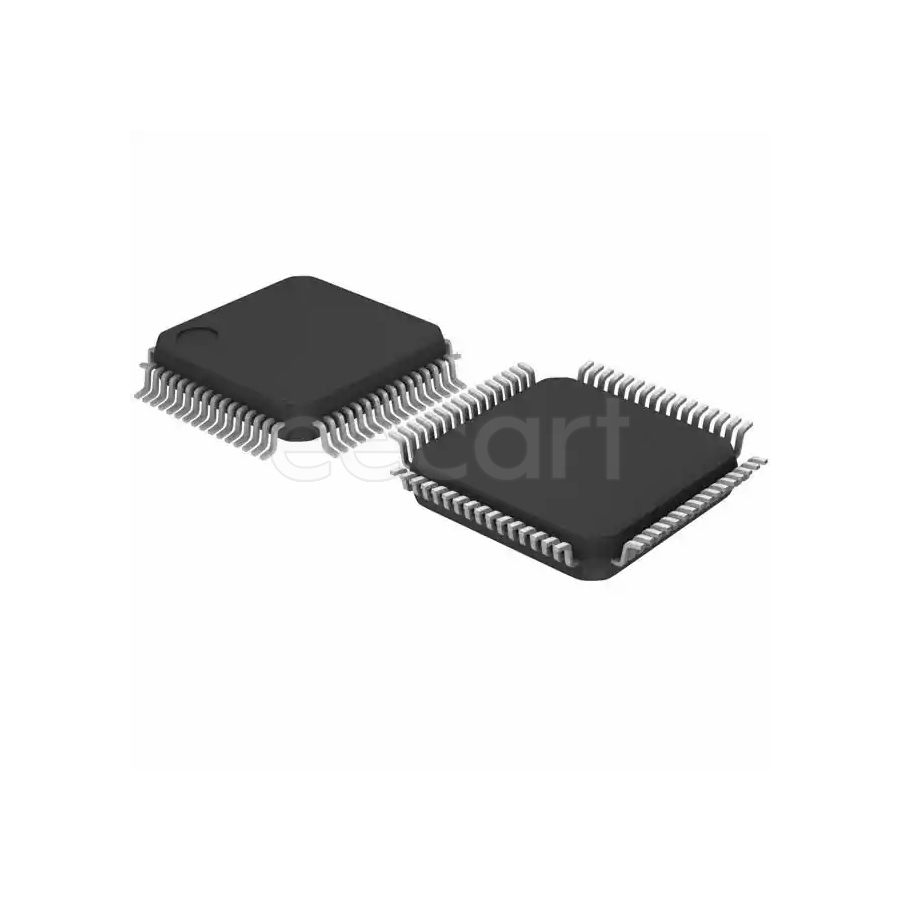

AD9238BSTZ-20
Manufacturer:
Analog Devices
Mfr.Part #:
AD9238BSTZ-20
Datasheet:
Description:
Analog to Digital Converters (ADCs) LQFP-64 SMD/SMT number of channels:2 Number of Inputs:2 1.5 B 20 Msps
| Parameter | Value |
|---|---|
| Length | 7 mm |
| Width | 7 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 64 |
| Height | 1.4 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 2 |
| Interface | Parallel |
| Min Input Voltage | 500 mV |
| Operating Supply Voltage | 3 V |
| Lifecycle Status | Production (Last Updated: 3 weeks ago) |
| Max Power Dissipation | 698 mW |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 2.7 V |
| Power Dissipation | 190 mW |
| Number of Channels | 2 |
| Number of Bits | 12 |
| Input capacitance | 7 pF |
| Number of Inputs | 2 |
| Supply Type | Single |
| Max Input Voltage | 1 V |
| Sampling Rate | 20 Msps |
| Integral Nonlinearity (INL) | 1.4 LSB |
| Number of Converters | 2 |
| Nominal Supply Current | 60 mA |
| Number of Analog Inputs | 2 |
| power consumption | 190 mW |
| Resolution | 1.5 B |
| Number of A/D Converters | 2 |
| Signal to Noise Ratio (SNR) | 70.4 dB |
| Differential Nonlinearity | 0.9 LSB |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 3 weeks ago) |
| RoHS | Compliant |
| Packaging | Tray |
| Features | Simultaneous Sampling |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Input Type | Differential, Single-Ended |
| Interface Type(Data Interface) | Parallel |
| Analog Supply Voltage | 2.7 V to 3.6 V |
| Max Digital Supply Voltage | 3.6 V |
| Min Digital Supply Voltage | 2.25 V |
| Reference Type | External, Internal |
